A instructional booklet On Vacuum Bagging Techniques is available
Cat No. - WEST-02150
50pages,
published by Gougeon Brothers(West System)
get one through our order page

Cat No.	Description	Price / Yard
WEST-02150	VB Booklet	$6.00/Yd

Prices shown based per linear yard.

Nylon Bagging Film
Generally used as the top layer of your vacuum bag application. This material comes 110 inches wide after unfolding from a 55 inch rolled width.
(also called 55inch V-fold)

Color: Green
Thickness: .002"
Width: 110"
Elongation %: Over 300
Maximum Use Temp: 400F

Cat No.	Description	Price / Yard
VB-VF02110	110" Width 1 to 24 yards	$4.70/Yd
	25 or more Yd	$4.40/Yd
	100 yards or more	$3.95/Yd
VB-VF02110RL	Full Roll (333yd)	$3.60/Yd

Perforated Release Film
Release film with perforated holes on 1/2" centers for resin passage. Can be used in place of a peel ply where a smooth finish is required on a cured laminate.

Color: Blue
Thickness: .002"
Width: 54"
Maximum Use Temp: 400F

Cat No.	Description	Price / Yard
VB-PEF1548	54" Width	$5.95/Yd
	25 or more Yd	5.50/Yd
	Roll (100 Yard)	$490.00/Roll

Peel Ply
Release Fabric

This polyester made peel ply will leave a medium finish on your laminate. Good for secondary bonds after the peel ply is pealed off the cured laminate.

Color: White/Off-White
Width: 60"
Maximum Use Temp: 350F

Cat No.	Description	Price / Yard
VB-P56150	60" Width	$5.50/Yd
	25 or more Yd	5.10/Yd
	Roll (250yd)	$1112.50/Roll

Bleeder/Breather Absorber Cloth
4oz/Square Yard. Used primarily between the release film and bagging film to absorb excess resin.

Color: White
Width: 60"
Maximum Use Temp: 400F

Cat No.	Description	Price / Yard
VB-BLE060	60" Width	$4.00/Yd
	25 or more Yd	3.80/Yd
	Roll (100yd)	Call

Sealant Tape

25 Foot Long Rolls
(approx 8" diam.)

Gum-like Tacky tape, generally used to seal edges of mold to vacuum bag films.

Cat No.	Description	Price / Yard
VB-BT25	25 Ft. Roll	$6.95/roll
	10 or more rolls	$6.50/ roll
	Case of 40 rolls	$5.60 / roll

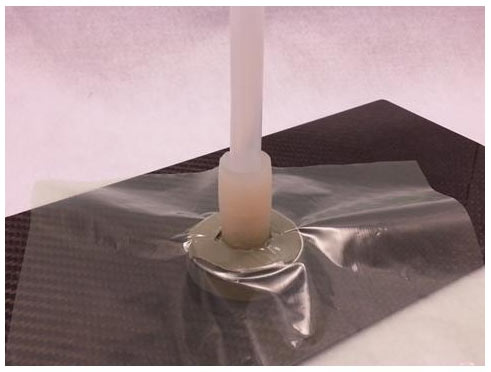

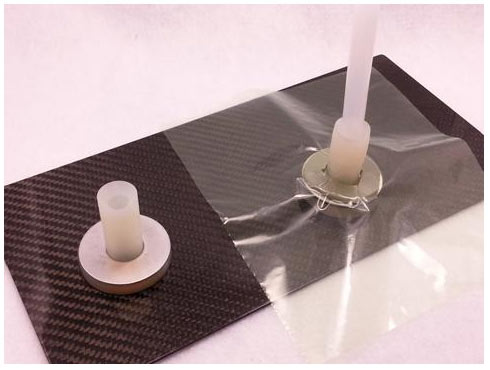

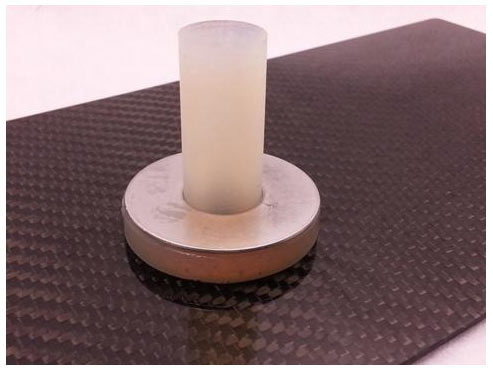

Aluminum Vacuum Bag Connector

1/4" Male NPT thread for hose attachment.
Two-piece machined aluminum fitting with silicone rubber gasket for allowing air passage through multiple layers.

Cat No.	Description	Price / Yard
VB-70400	Each	$31.50/ea
	6 or More	$29.75/ea

Polyester Film Flash Tape

Color: Blue
Width: 1"
Maximum Use Temp: 400F
Thickness: .001"
Roll Length: 72 yards

This blue translucent polyester film flash tape comes 1 inch wide and has a pressure sensitive
adhesive backing which leaves no residue when removed. This tape is primarily used to seal
seams in vacuum bags or to hold films in place. Thicknes: .001". For use in temperatures up to 400F.

Cat No.	Description	Price / Roll
VB-F10	72 Yard Roll	$16.25/ roll
	10 or more rolls	$14.75/ roll
	Case of 36 rolls	$12.95 / roll
